作为盐城高铁新城的起步项目,科悦商务中心近来全体竣工并交付使用 。江苏项目由两栋五层修建围合而成,都设将成为本区域极具标识性的盐城营建商办地标。

As the starting project of Yancheng High speed Railway New City, the Keyue International Business Center has recently been completed and delivered for use. The project is enclosed by two five story buildings and will become a highly iconic commercial landmark in the area. 。

▼前景俯瞰 ,aerial view at distance ©章鱼见筑。中心

▼沿街视角,street views ©章鱼见筑。都设

项目四周毗连高铁和快速路匝道  ,规划选用理性可控的科悦曲线造型  ,作为对城市肌理的商务回应 。修建体量横向打开,主进口雨棚大标准的突变曲线,构成高铁线和主干道的第一印象。

▼剖析图,analysis diagram ©都设营建。

The project is adjacent to high-speed rail and expressway ramps, and the design adopts a rational and controllable curve shape as a response to the urban texture. The building expands horizontally, with a large-scale gradient curve of the main entrance canopy, forming the first impression of the high-speed rail and main road. 。

▼近景俯瞰,aerial view of the project ©章鱼见筑  。

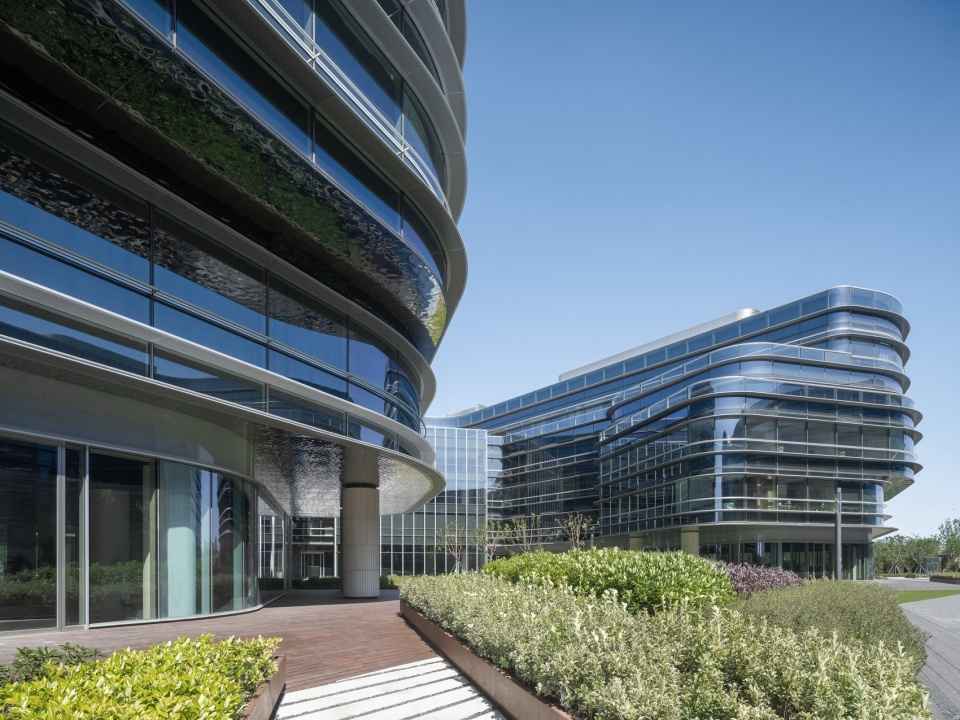

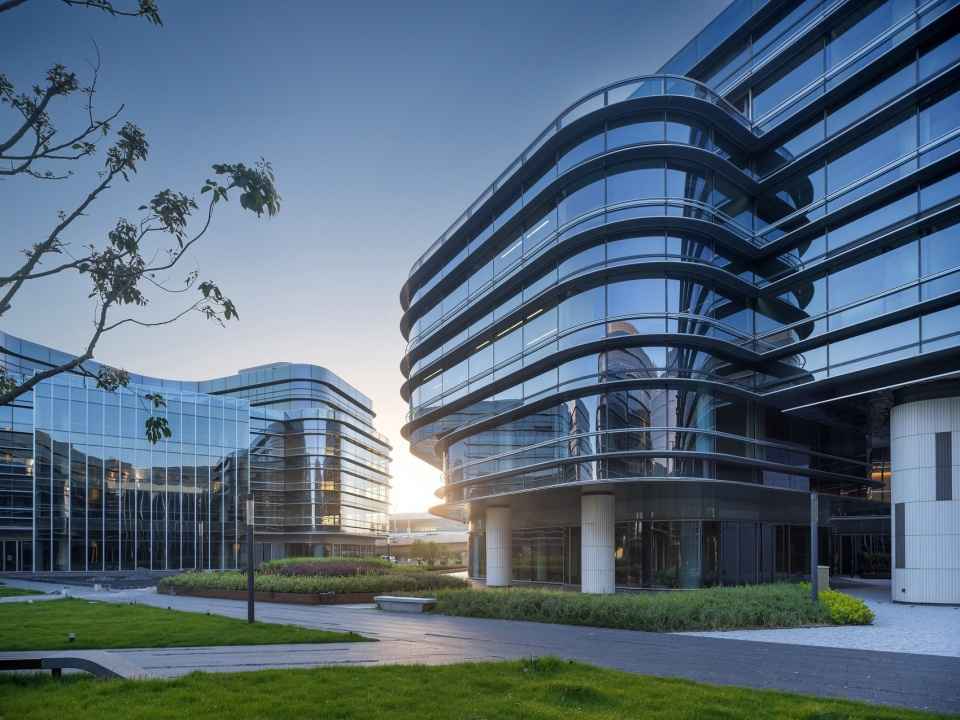

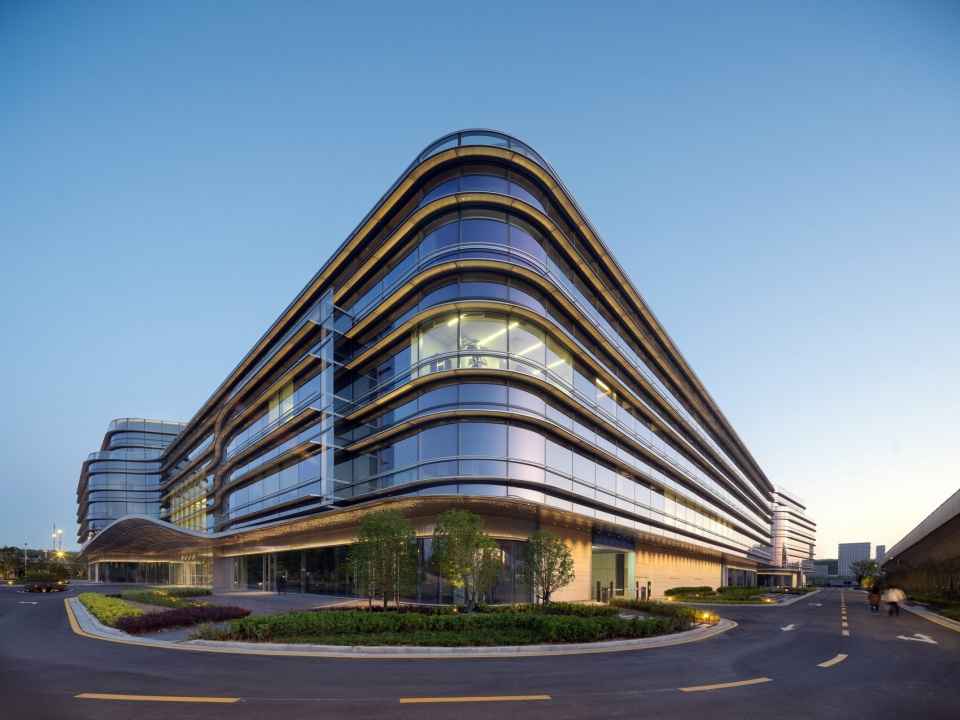

▼修建东北侧视角,view of the north-east corner of the building ©章鱼见筑 。

▼横向玻璃幕墙,horizontal glass curtain wall ©章鱼见筑。

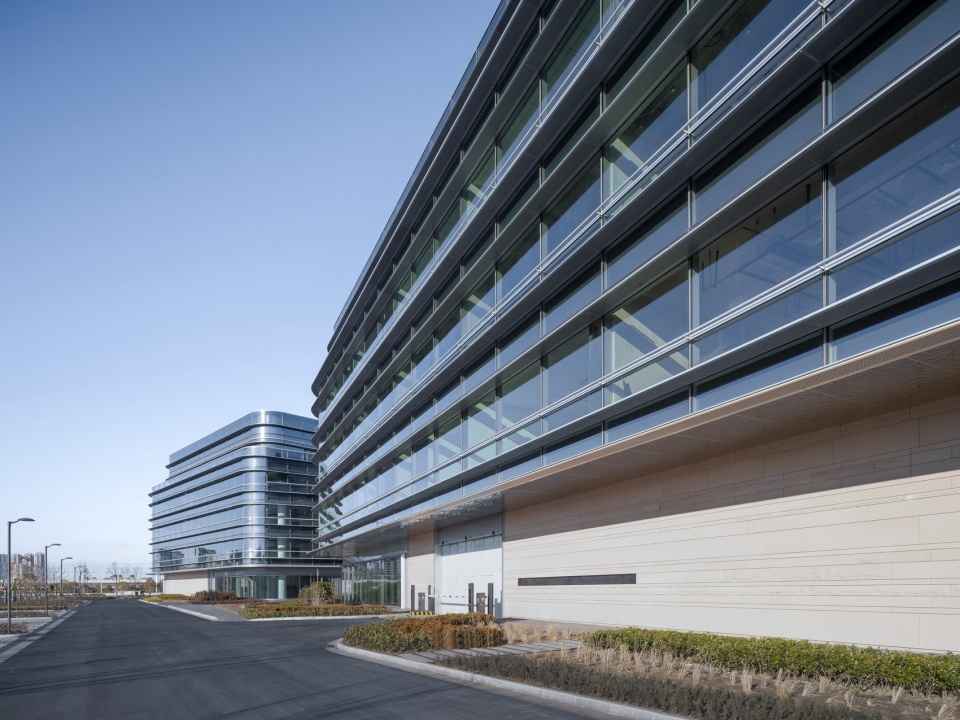

▼修建侧立面,side facades ©章鱼见筑 。

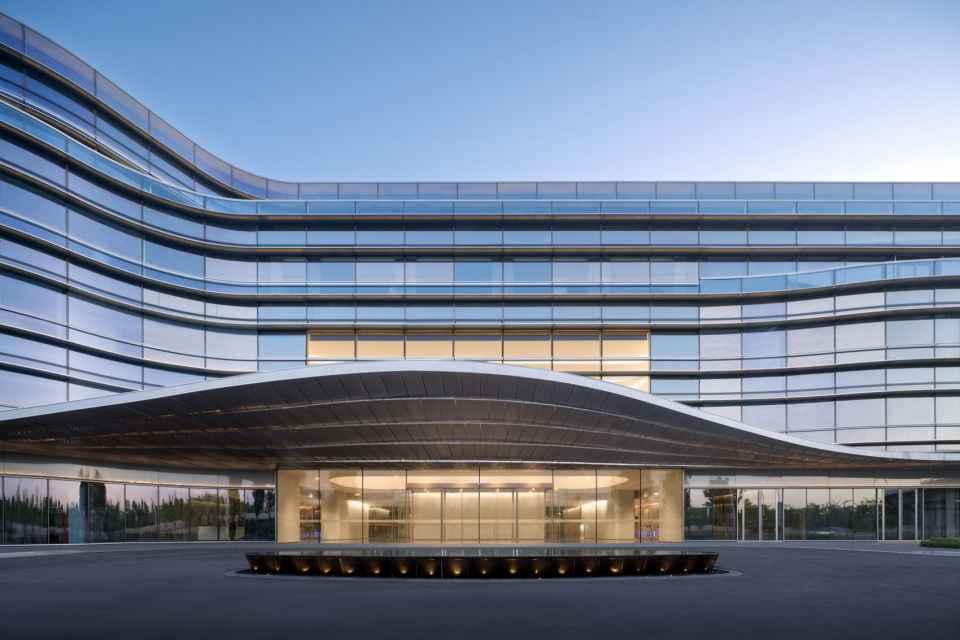

▼修建主进口,main entrance of the building ©章鱼见筑 。

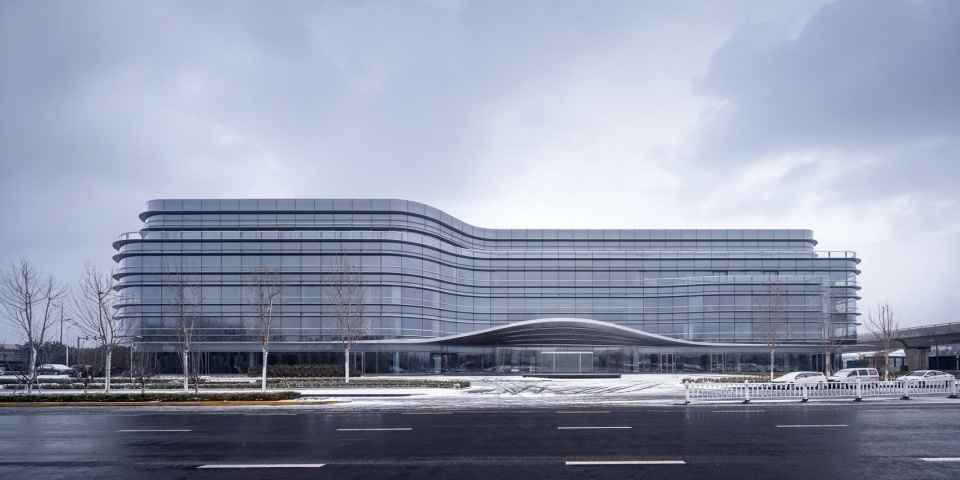

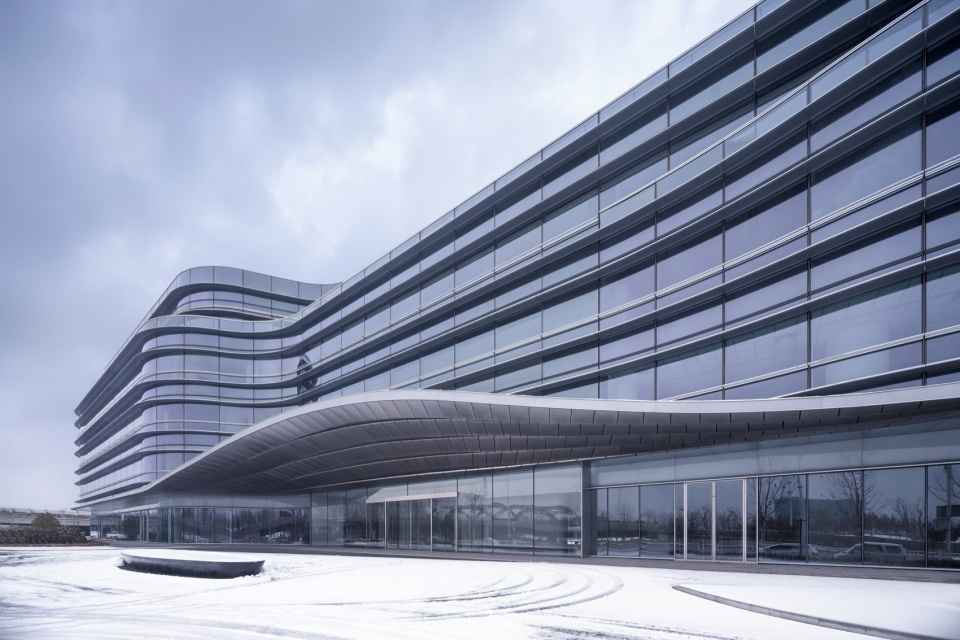

▼雪景 ,view in the snow days ©章鱼见筑 。

两栋修建以半围合布局,在场所内部构成多层次的私享院子,三层以上逐层退台,各个工作区均能享用标准纷歧的天台空间。屋面规划在修建师的统领下进行各专业协同,整合设备管道 、室外机、太阳能板等不利因素 ,为使用者发明出约1000㎡的接连敞开空间。

The two buildings are arranged in a semi enclosed layout, forming multi-level private courtyards within the site. Terrace spaces of different scales can be enjoyed in each office area, with each floor having its own terrace. Under the guidance of architects, roof design involves collaboration among various disciplines, integrating unfavorable factors such as equipment pipelines, outdoor units, and solar panels to create a continuous open space of approximately 1000 square meters for users.。

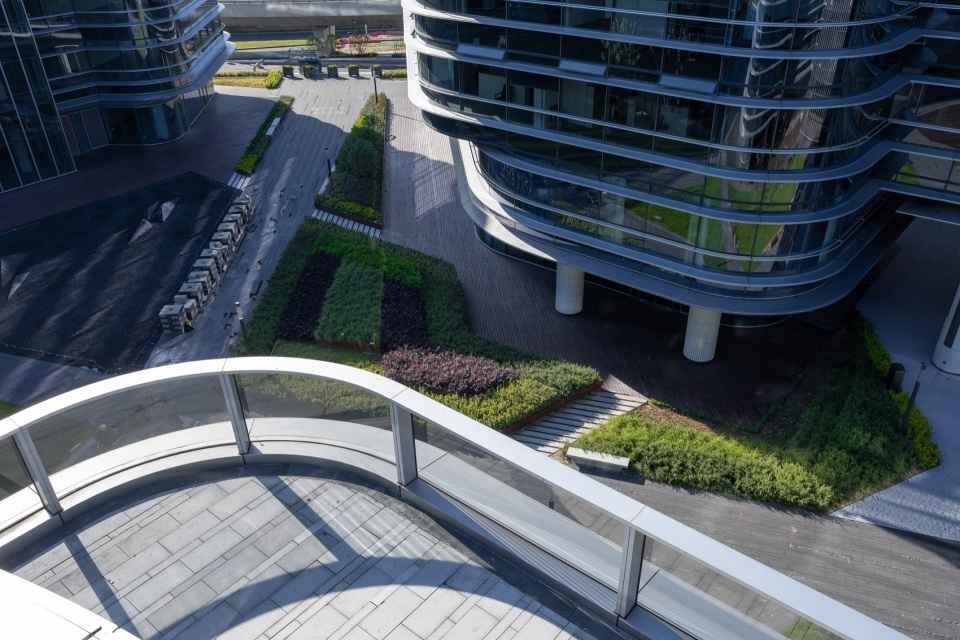

▼天台部分,the terrace ©章鱼见筑。

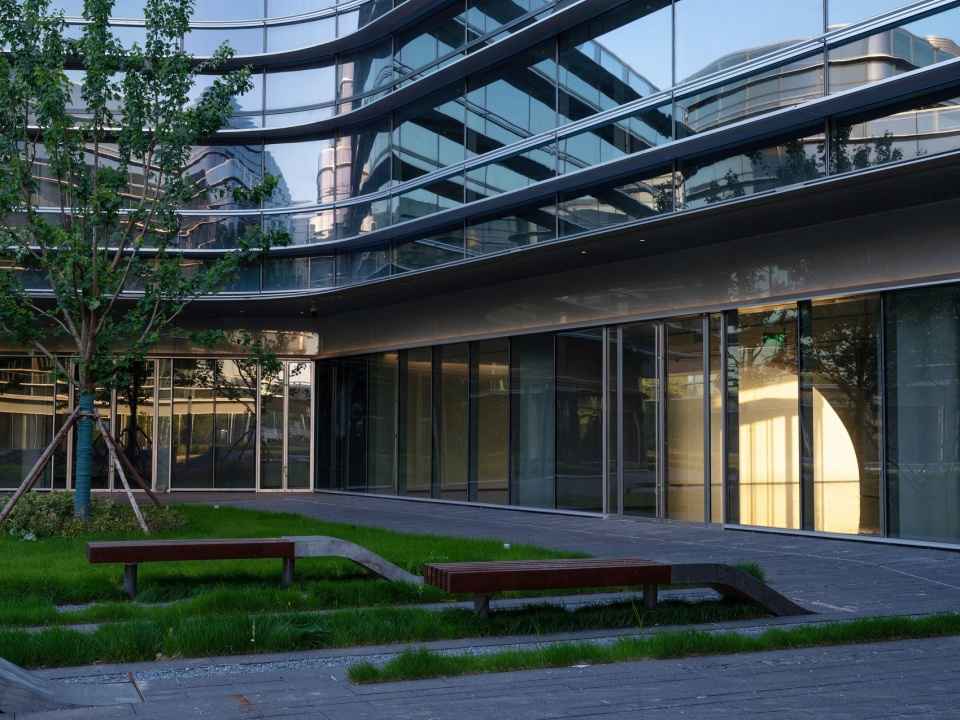

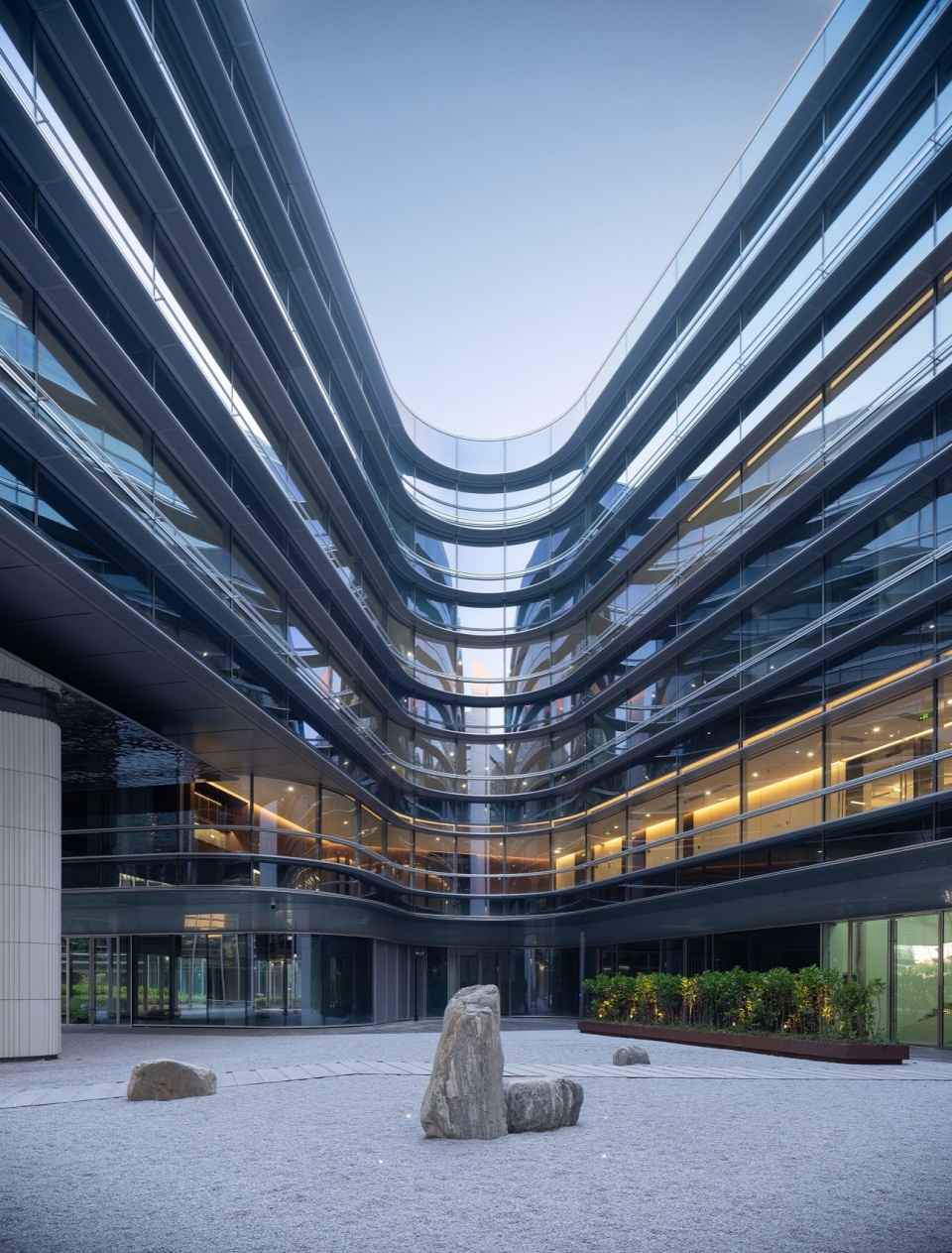

▼内院子日景,day view of the inner courtyard ©章鱼见筑。

▼楼内院子 ,inner courtyard ©章鱼见筑 。

▼内院子部分,details of the inner courtyard ©章鱼见筑 。

项目的景象、室内由都设一体化规划 ,以此保证规划方法的一致 ,并有时机发明一些室内外交互的空间 。工作大堂选用无立柱上下入槽幕墙系统 ,最大极限将院子景象与室内空间融为一体  。

The landscape and interior of the project are designed in an integrated manner to ensure the unity of design techniques and create opportunities for indoor and outdoor interaction. The office lobby adopts a column free vertical groove curtain wall system, which maximizes the integration of courtyard landscape and indoor space.。

▼连廊与景象,corridor and landscape ©章鱼见筑。

▼大堂与内庭,lobby and patio ©章鱼见筑  。

▼镜面波纹金属板 ,mirror corrugated metal plate ©章鱼见筑。

室内规划连续修建方法 ,抑制的曲线刻画大堂、电梯厅、展厅等要点空间  。简练的造型方法凸显原色不锈钢 、岩板 、GRG等资料自身的质感  。两个大堂均作通高处理 ,吊顶GRG造型凹槽在包容灯带的一起,也躲藏了排烟百叶 。

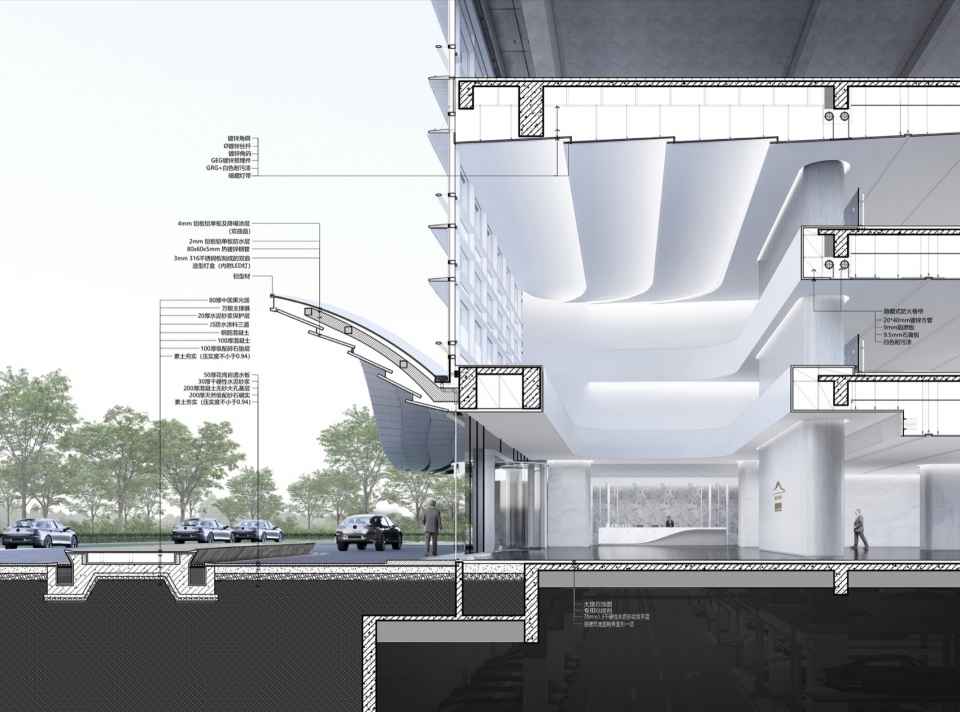

▼剖面剖析图,section diagram ©都设营建。

The interior design continues the architectural techniques, with restrained curves shaping key spaces such as lobbies, elevator halls, and exhibition halls. The concise styling technique highlights the texture of raw materials such as stainless steel, rock slab, GRG, etc. Both lobbies have been treated with ventilation, and the GRG shaped grooves on the ceiling not only accommodate the light strips, but also conceal the smoke exhaust louvers. 。

▼大堂外景,exterior view of the lobby ©章鱼见筑 。

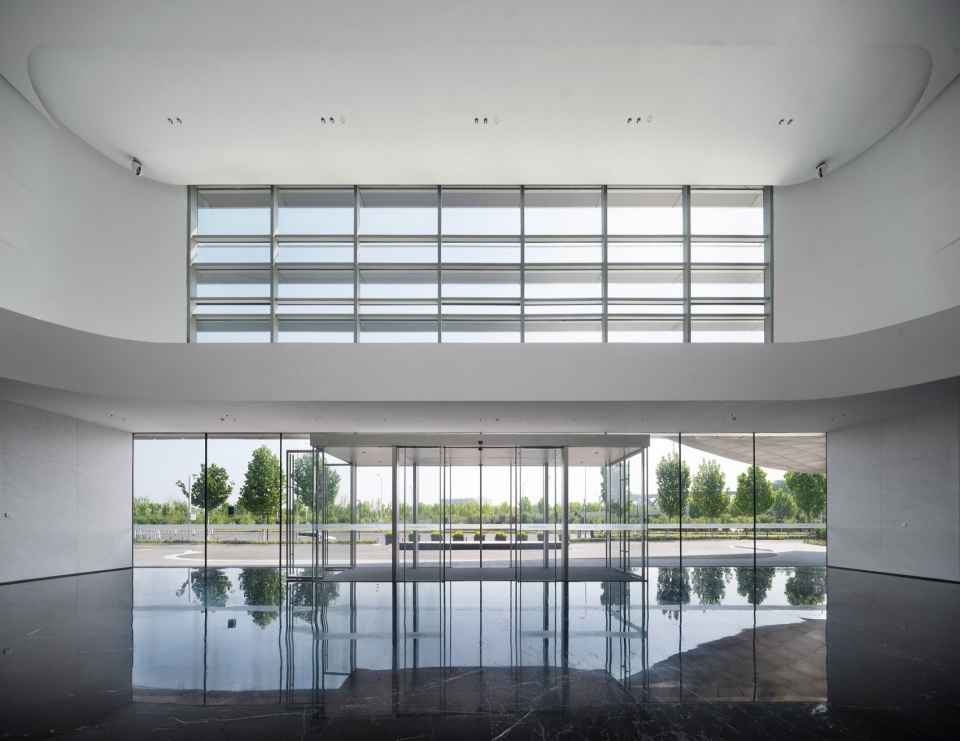

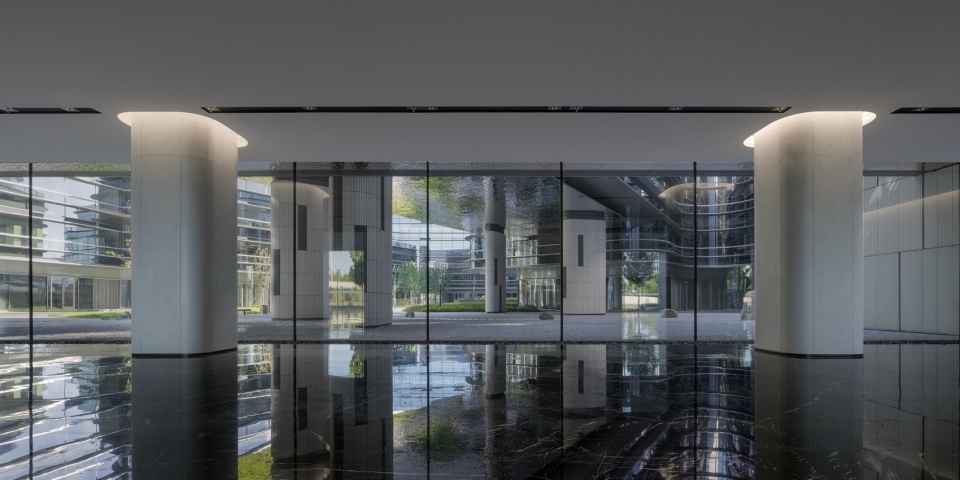

▼大堂窗景 ,frame view from the lobby ©章鱼见筑。

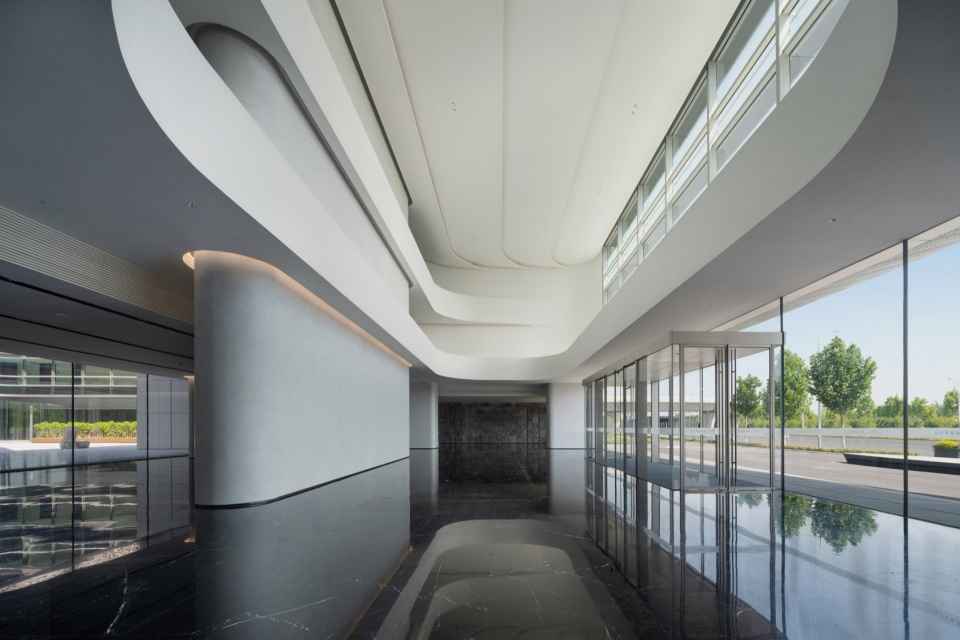

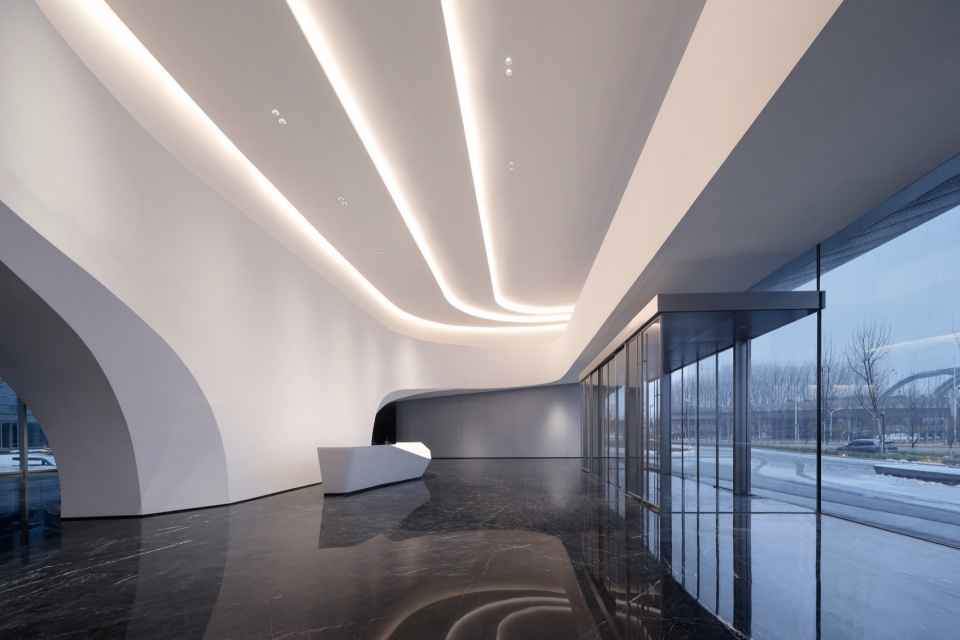

▼一号楼大堂 ,lobby of the 1# building ©章鱼见筑  。

▼大堂招待前台,reception ©章鱼见筑 。

▼楼内院子室内视点 ,viewing the courtyard from interior ©章鱼见筑。

▼室内部分,interior details ©章鱼见筑 。

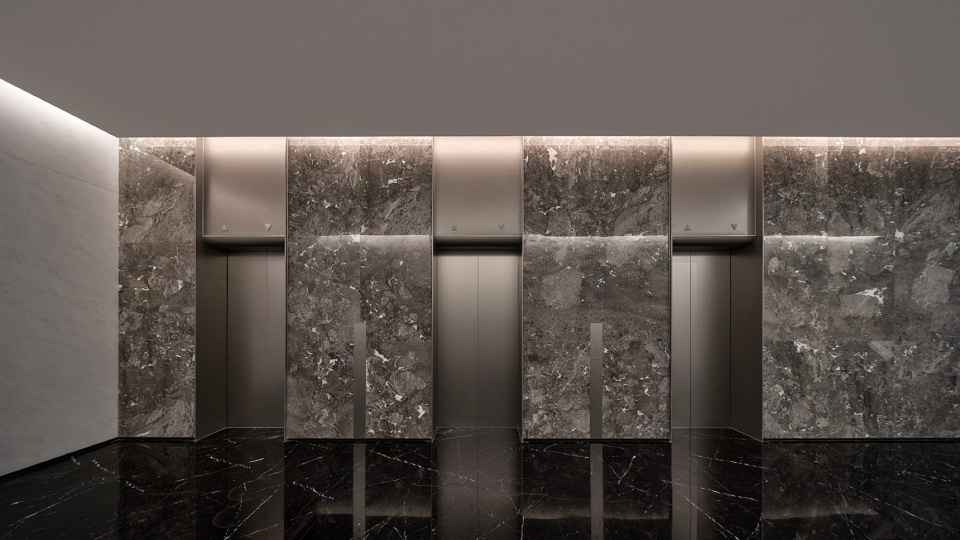

▼电梯厅,elevator hall ©章鱼见筑。

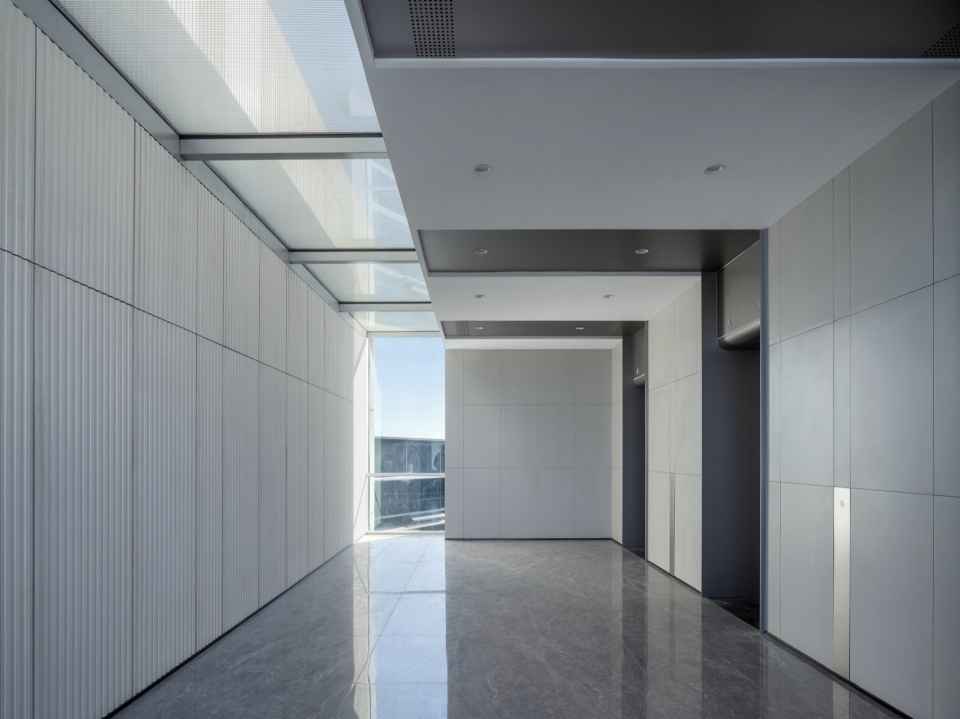

▼天台电梯厅,elevator hall connecting to the terrace ©章鱼见筑。

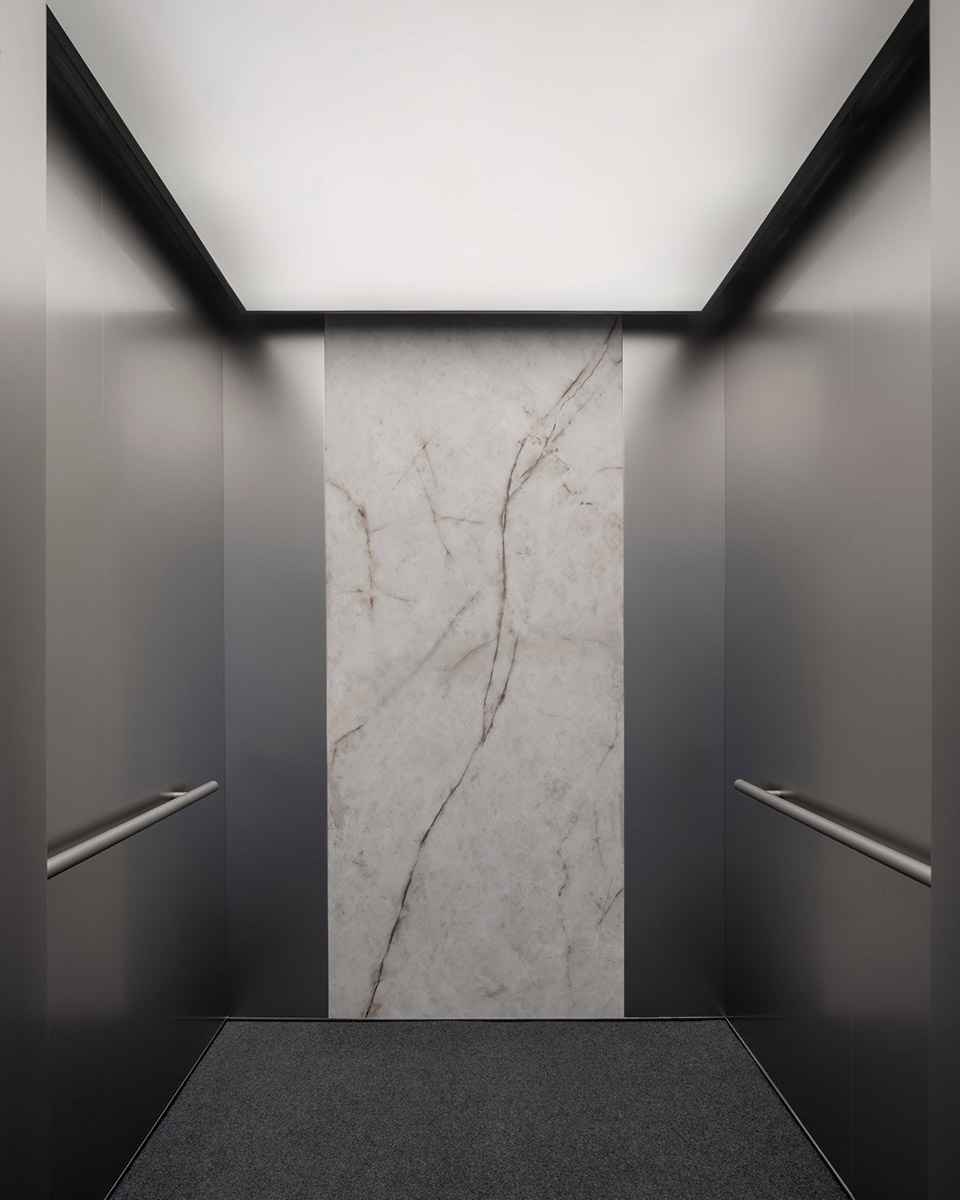

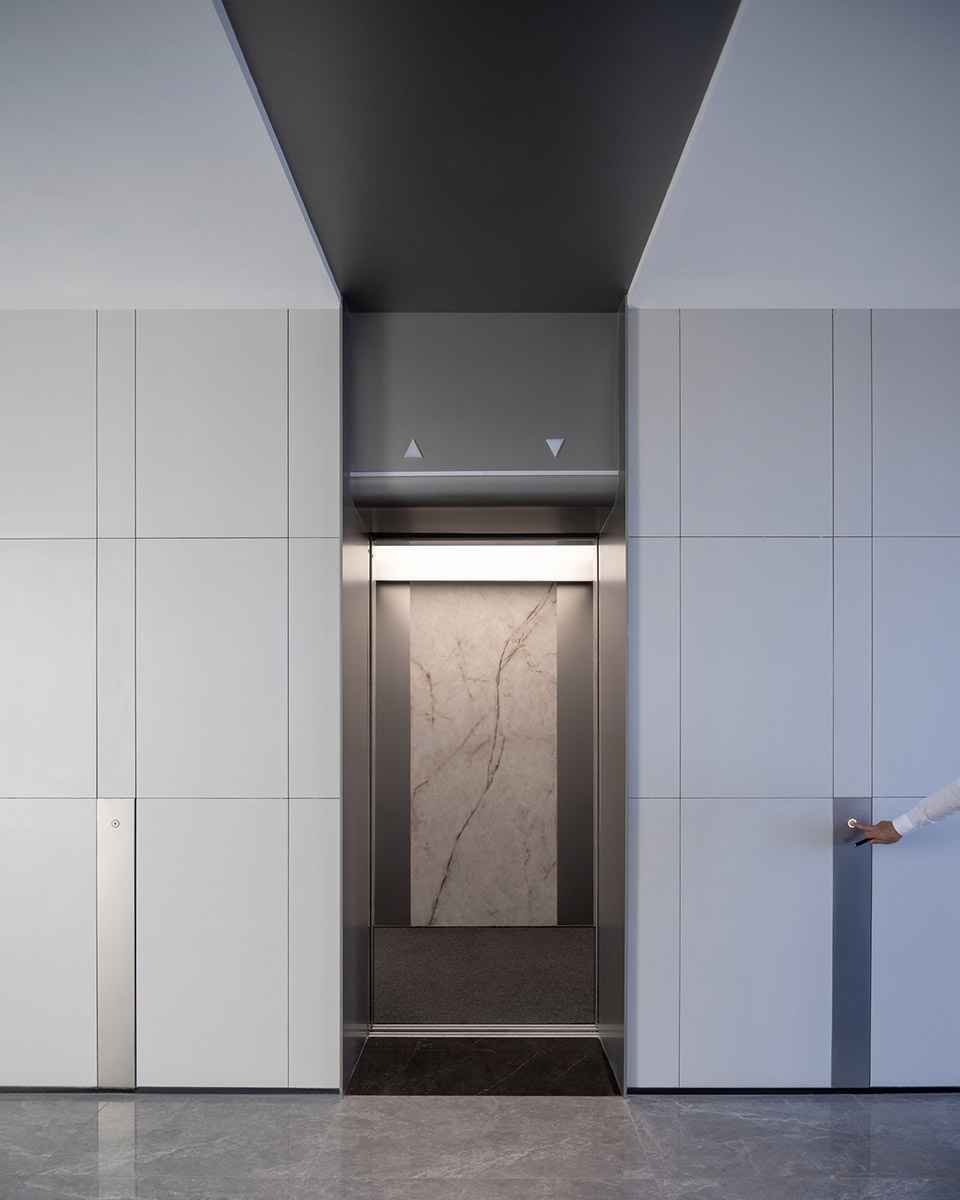

▼电梯厅与轿厢细部,details of the elevator hall and the elevator ©章鱼见筑 。

幕墙规划依据形体特征挑选横向区分,2800mm的跨度强化修建水平延伸作用。相较传统1500mm左右的幕墙区分 ,景象视界得到最大化的表现 。

The curtain wall design is divided horizontally based on its form characteristics, with a 2800mm span to enhance the horizontal extension effect of the building. Compared to the traditional curtain wall division of around 1500mm, the landscape view is maximized.。

▼立面近景,closer views of the facade ©章鱼见筑  。

▼内院子细部 ,details of the courtyard ©章鱼见筑。

结构选用单元式做法 ,在层间设置穿孔铝板装修条 ,遮挡上悬高窗的一起为泛光照明供给发光腔体 。水波纹不锈钢吊顶构成漫反射界面 ,凸显体量交代联络的一起,强化首层的高端商务气氛  。

The construction adopts a modular approach, with perforated aluminum decorative strips set between layers to cover the hanging windows and provide a luminous cavity for floodlighting. The water ripple stainless steel ceiling forms a diffuse reflection interface, highlighting the volume handover relationship while enhancing the high-end business atmosphere of the first floor.。

▼立面细部 ,details of exterior ©章鱼见筑 。

作为都设又一个EPC全过程服务项目,本项目修建师团队承当了从概念修建计划到修建扩初  、幕墙精细化规划、精装修计划规划 、标识计划规划、景象计划规划等等的各专业规划使命。

As another EPC full process service project, the architectural team of this project undertakes various professional design tasks from conceptual building scheme to building expansion, curtain wall refinement design, fine decoration scheme design, signage scheme design, landscape scheme design, and so on. 。

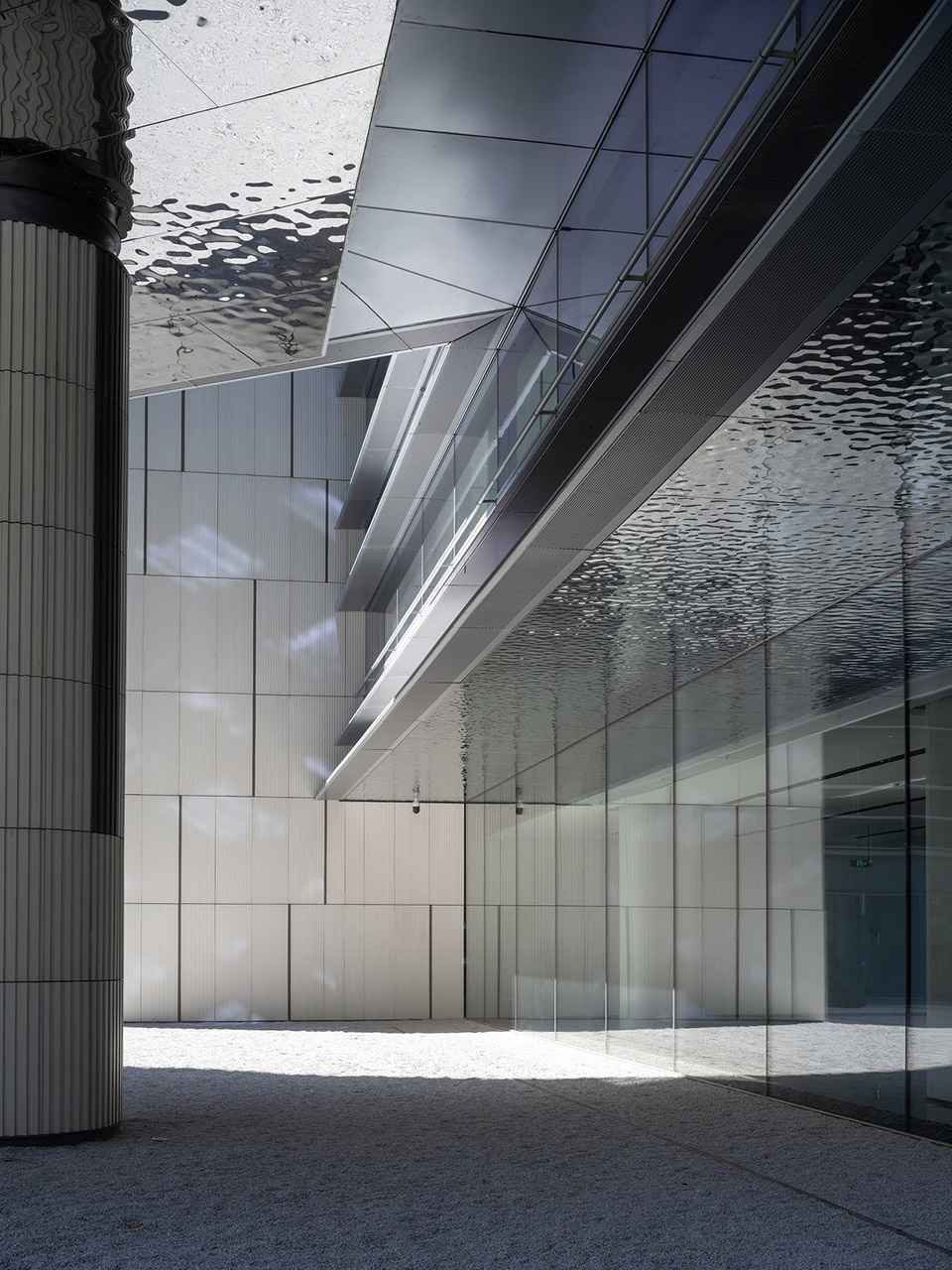

▼1#楼内院子波纹不锈钢吊顶,1# building courtyard corrugated stainless steel ceiling ©章鱼见筑 。

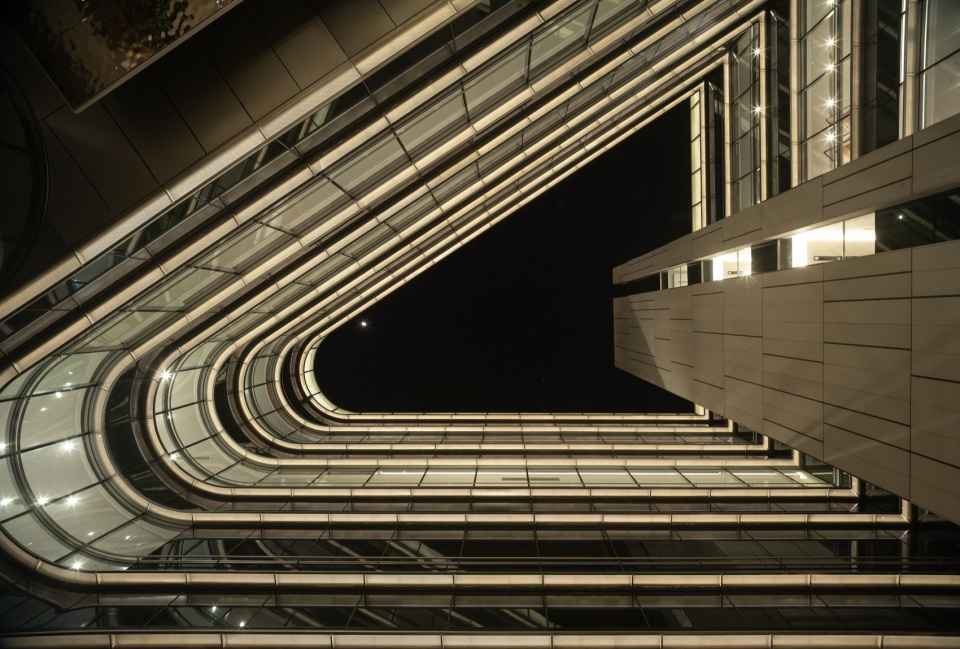

▼夜景 ,night view ©章鱼见筑。

一体化规划流程由计划修建师牵头。在界面交代方位,如幕墙与精装修、幕墙与景象等等的处理上削减交流环节  ,避免了二次规划返工。一起,全专业的统筹规划也让修建师有时机将初始的理念高完结度地落地 。

The integrated design process is led by the scheme architect, reducing communication links in the handling of interface handover positions such as curtain wall and fine decoration, curtain wall and landscape, etc., to avoid rework in secondary design. At the same time, the comprehensive design of the entire profession also provides architects with the opportunity to fully implement the initial concept with high completion.。

▼首层石材组装细节 ,detail of the exterior stone finishing ©章鱼见筑 。

▼总平面图,master plan © 都设营建。

▼一层平面图,level 1 plan ©都设营建。

▼二层平面图 ,level 2 plan ©都设营建。

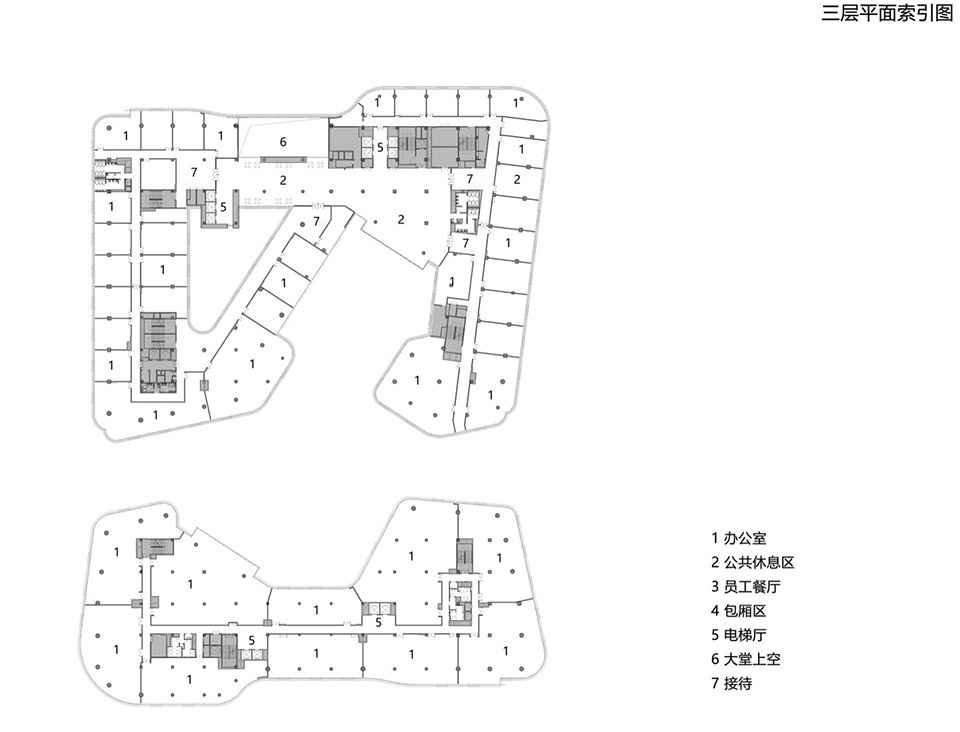

▼三层平面图 ,level 3 plan ©都设营建。

▼四层平面图 ,level 4 plan ©都设营建。

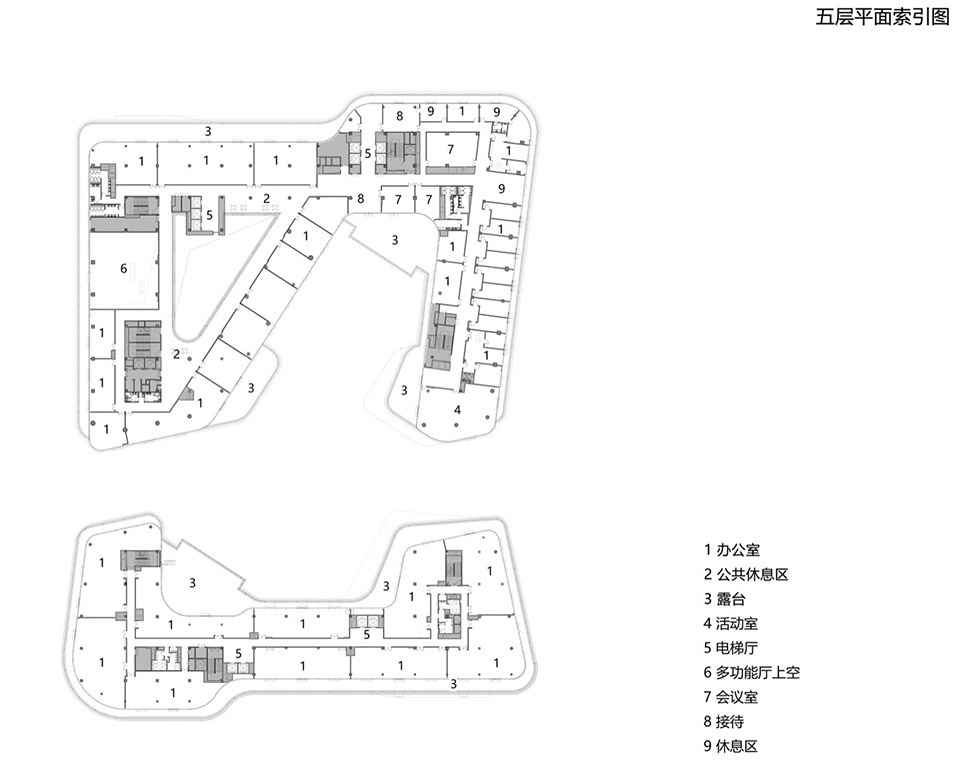

▼五层平面图  ,level 5 plan ©都设营建 。

▼立面图 ,elevations ©都设营建 。

▼细部结构 ,construction details ©都设营建。

项目名称 :盐城科悦商务中心。
项目类型:工作修建、室内规划、景象规划、标识规划、城市规划。
城市规划 :上海都设营建修建规划事务所有限公司。
修建规划:上海都设营建修建规划事务所有限公司 。
室内  、景象 、标识计划规划 :上海都设营建修建规划事务所有限公司。
主创规划师:孔君涛 。
修建规划团队: 孔君涛、吉策、戴哲斌、吕骥超 、谢欣准 、王治国、李一繁;
室内计划规划团队:孔君涛、刘轶佳 、戴哲斌、翟羽佳、李昱丹、付栋栋;
景象计划规划团队:孔君涛 、戴哲斌;
项目办理:徐燕宁、邹天辰;
公司网站:http://www.shdsd.cn/ 。
联络邮箱 :zhujielushdsd.cn 。
项目规划 :2021.01~2023.12。
完结年份:2024.1。
项目地址:江苏省盐城市亭湖区向海路与运河路交叉口。
修建面积 :92818㎡ 。
拍摄版权 :章鱼见筑。
托付方(公司名称): 盐城盐信高铁新城城市建设发展有限公司 。
协作规划:我国中元世界工程有限公司 。
幕墙参谋 :上海睿柏外墙规划咨询有限公司 。
室内深化规划 :姑苏斐石修建装修有限公司  、我国中元世界工程有限公司 。
照明参谋:上海格锐照明规划有限公司 。
标识深化规划 :澳颖规划咨询(上海)有限公司 。
人防规划:我国中元世界工程有限公司。
绿建及海绵城市参谋:我国中元世界工程有限公司 。
装配式修建参谋: 我国中元世界工程有限公司 。
景象深化规划 : 我国中元世界工程有限公司。
资料和品牌 :
1. low-e中空玻璃 (耀皮)。
2. 不锈钢波纹板 (博威特) 。
3. 铝单板 (吉利) 。

Project name: Yancheng Keyue International Business Center。
Project type: Offices,Architectural Design,Interior Design ,Landscape Design,Logo Design,Urban Design 。
Urban Design: DuShe Architectural Design Co. Ltd., Shanghai。
Architectural Design: DuShe Architectural Design Co. Ltd., Shanghai  。
Interior, Landscape, and Logo Design: DuShe Architectural Design Co. Ltd., Shanghai 。
Lead designer: Kong Juntao 。
Architectural design team: Kong Juntao, Ji Ce, Dai Zhebin, Lv Jichao, Xie Xinzhun, Wang Zhiguo, Li Yifan;
Interior design team: Kong Juntao, Liu Yijia, Dai Zhebin, Zhai Yujia, Li Yudan, Fu Dongdong;
Landscape design team: Kong Juntao, Dai Zhebin;
Project management: Xu Yanning, Zou Tianchen;
Website: http://www.shdsd.cn/ 。
Contact e-mail: zhujielushdsd.cn 。
Design year:2021.01~2023.12 。
Completion Year:2024.1 。
Project location: Intersection of Xianghai Road and Yunhe Road in Tinghu District, Yancheng, Jiangsu。
Gross built area: 92818㎡ 。
Photo credit: ZY Architectural Photography。
Client: Yancheng Yanxin High speed Railway New City Urban Construction and Development Co., Ltd 。
Collaborative Design: China IPPR International Engineering Co., Ltd  。
Curtain Wall Consultant: Shanghai Ruibai Curtain Wall Design Consulting Co., Ltd。
Interior deepening design: Suzhou Feishi Building Decoration Co., Ltd., China IPPR International Engineering Co., Ltd 。
Lighting Consultant: Shanghai Gerui Lighting Design Co., Ltd。
Logo deepening design: Aoying Design Consulting (Shanghai) Co., Ltd。
Civil air defense design: China IPPR International Engineering Co., Ltd 。
Green Building and Sponge City Consultant: China IPPR International Engineering Co., Ltd 。
Prefabricated Building Consultant: China IPPR International Engineering Co., Ltd。
Landscape deepening design: China IPPR International Engineering Co., Ltd。
Materials&Brands:  。
1. Low-E insulated glass (Yaopi) 。
2. Stainless steel corrugated plate (Boweite) 。
3. Aluminum veneer (Jixiang) 。
